DreamsCap X1 Full Performance Capture Professional Motion Capture Kits for Animators and Film and Game Producers

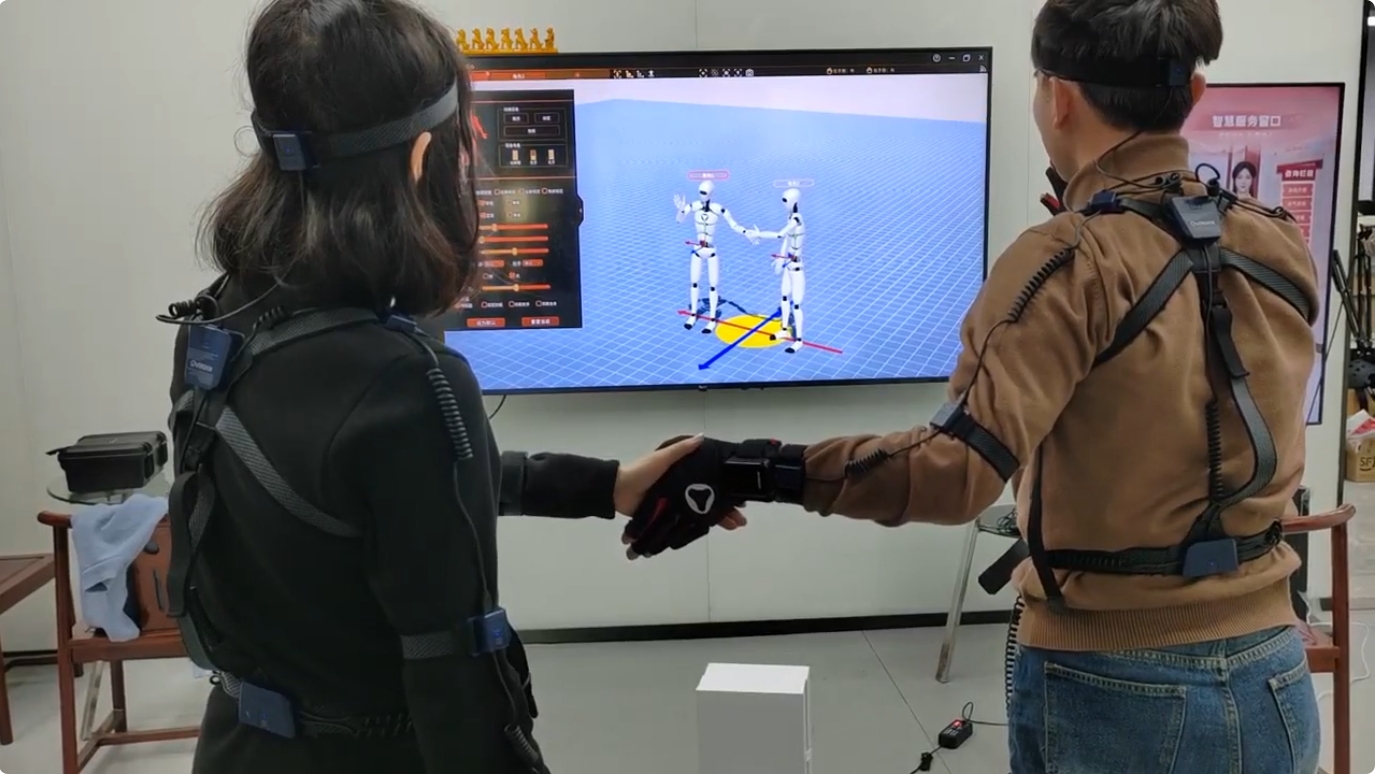

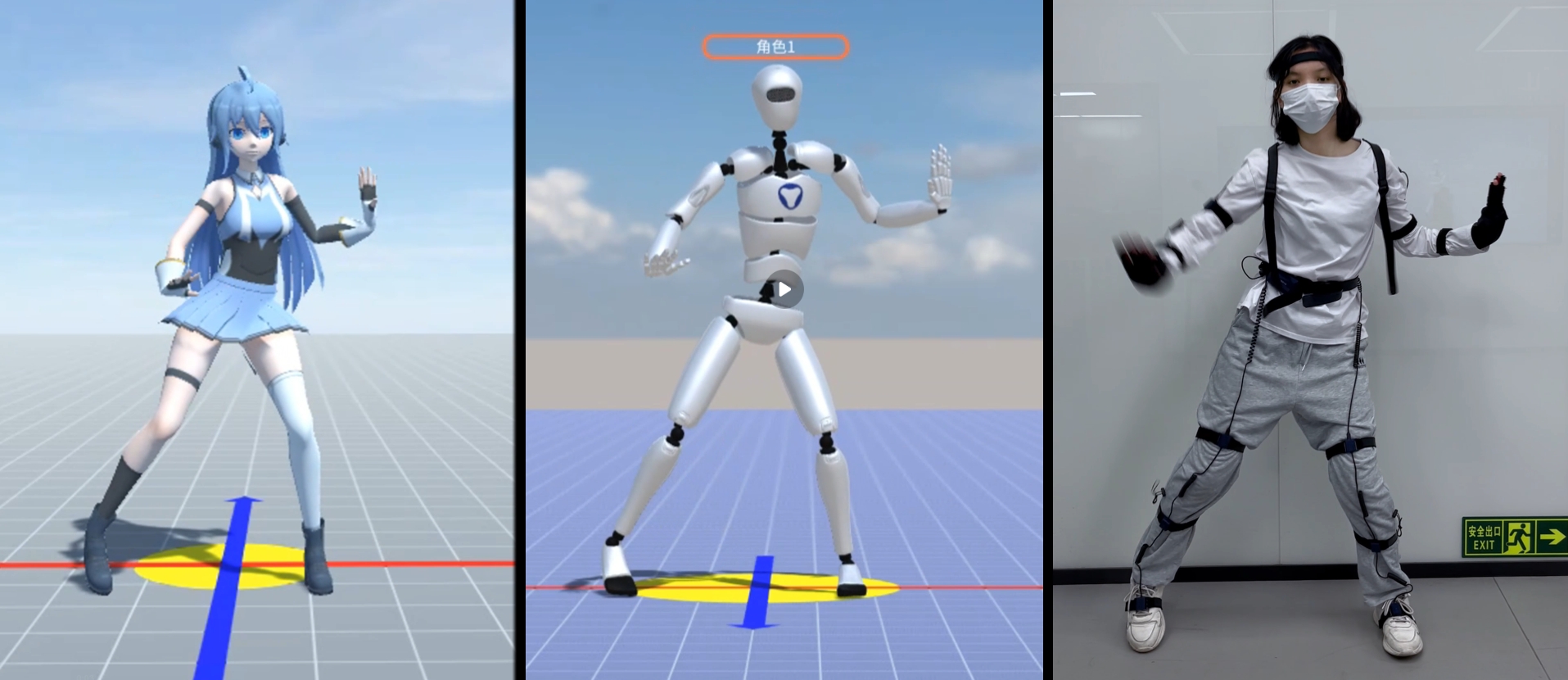

DreamsCap X1 Full Performance Capture integrates 31 key nodes of the whole body, accurate to the finger joints, one-button drive, real-time reconstruction of the performer’s trajectory in three-dimensional space, accurately capture the movements of the real human actor, and its real-time conversion into a digital model, synchronous generation of three-dimensional computer animation;

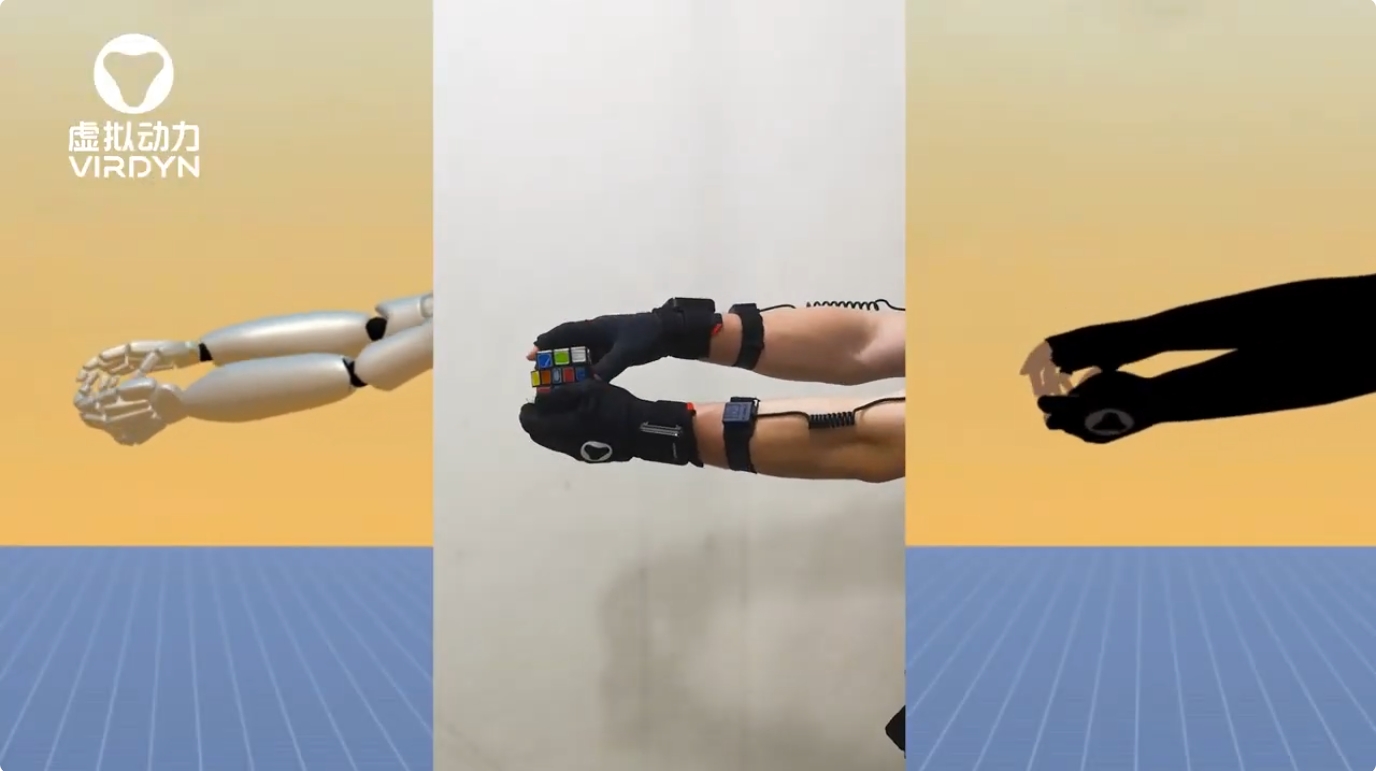

The integration of 16 sensor nodes on the back of the hand and fingers, together with optical positioning tracking and gesture recognition, is a seamless interface between the physical world and the digital virtual world.
With accurate facial expression capture algorithm, it can synchronise human facial expression to digital character in real time, and the algorithm supports more than 52 expression data.
What you can get from Dreamscap X1:
●Body mocap suit: DreamsCap Body
●Hand&Fingers mocap gloves: DreamsCap Glove
●Camera-Based face capture helmet: DreamsCap Face
●Professional motion capture software system: DreamsCap Studio
●Accessories: 7-Port Expander/64GB Mobile Hard Drive/Software keys/User Manuals/Safety storage box
●FREE AND FAST worldwide shipping: We support shipping worldwide without shipping fee. 3-5 days for East Asia, 7-15 days for North America, Europe and Mid-Asia, 12-18 days for Latin America, Australia, Africa.
●FREE software updates

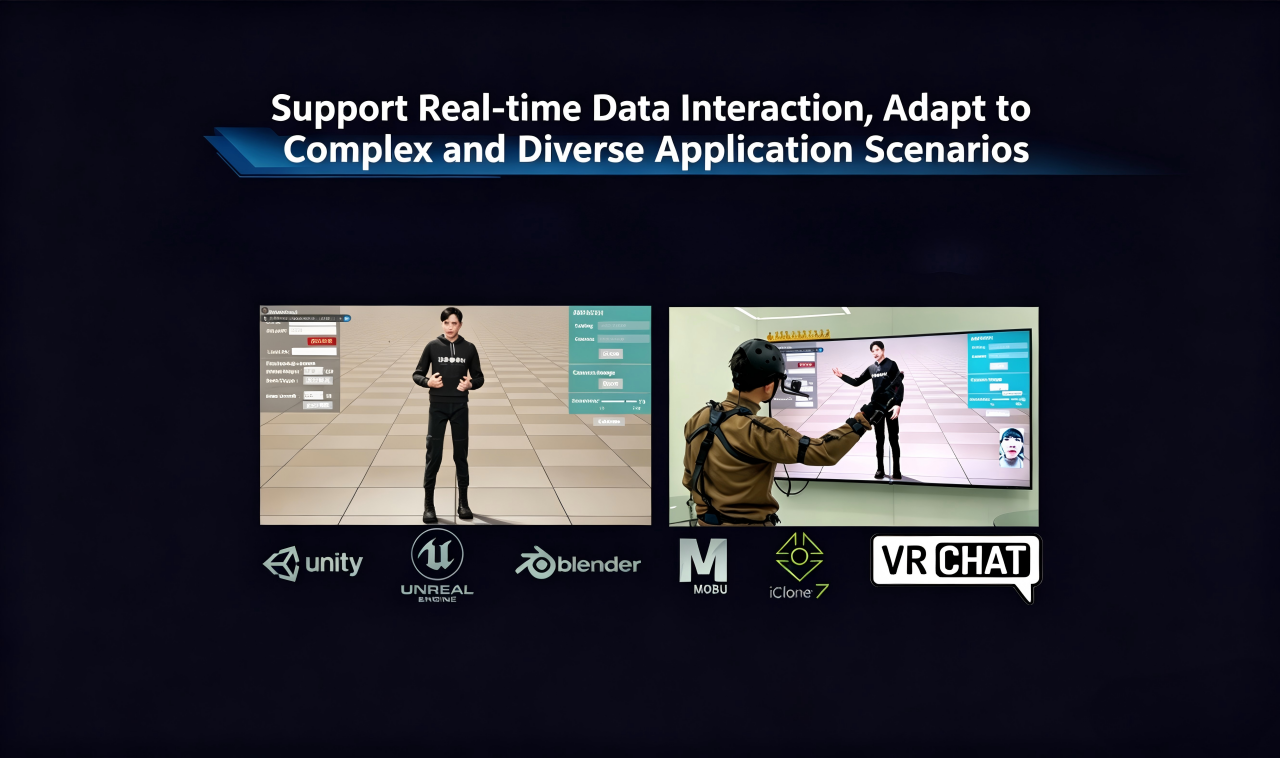

●FREE game engine and 3D softwares Plug-ins: Unity/UE4.24-5.3/IClone7-8/Blender/Maya/MotionBuilder/3DS MAX
●FREE Plugins support Steam Platform: VRChat/Warudo for Vtuber
●FREE C++SDK package
●ONE-YEAR and extend warranty time: For ALL device components
●BEST ONE-ON-ONE customer support engineers
●12 Hours quick response
●48 hours shipments after paid
Please email us for a quote. We have special offers for bulk orders, resellers, education/students, small studios etc.
Features
DreamsCap X1 Full Performance Capture kit contains body motion capture suit, hand and fingers motion capture gloves, camera-based face capture helmet and professional motion capture software system. It is suitable for production scenarios that require high accuracy, details, smoothness, low latency and other parameters of motion capture, and is especially recommended for professional animation production, film production, game production and so on.
In addition, the professional version of the inertial motion capture solution is also applied in efficient laboratories, academic research, and motion data analysis. Building upon the enhanced capture performance of the upgraded hardware equipment, combined with the powerful data collection and analysis capabilities of the DreamsCap Studio professional motion capture software engine, it allows for quick and convenient examination of spatial displacement data, acceleration data, and more through exportable CSV files. This integration of human performance data helps individuals achieve their optimal states, crucial for optimizing athlete performance, injury prevention, and expediting recovery.
| Kit Contents | Hardware | Body mocap suit: DreamsCap Body |
| Hand mocap gloves: DreamsCap Glove | ||
| Face capture helmet: DreamsCap Face | ||
| Software | Professional Motion Capture Engine: DreamsCapStudio | |
| Accessories | 7-Port Expander | |
| 64GB Mobile Hard Drive | ||
| Software keys | ||
| User Manuals | ||
| Safety storage box: (1) Formed by one-piece injection moulding of high-impact robust engineering plastics (2) Equipped with automatic air valve with waterproof and breathable membrane (3) Built-in high-density shockproof foam (4) The safety storage box should be equipped with a handle, tow bar, pulleys, easy to move and carry. |
||
| DreamsCap Body | |
| Weight of motion capture suit: | ≤500g |
| Body webbing material: | Nylon fabric with adjustable elastic for all shapes and sizes |
| Number of sensors: | 15 |
| Battery type: | Lithium battery |
| Operating voltage: | 5V |
| Endurance: | ≥8h |
| Transmission method: | Adaptive frequency hopping 2.4 GHz wireless |
| Data Latency: | <16ms |
| Transmission distance: | Up to 100m transmission distance is supported, but for the best results of the device, it is recommended that no more than 60m. |
| Transmission frame rate: | 60Hz/72Hz/80Hz/96Hz/120Hz |
| Sensor core algorithm: | Independent research and development of multi-level AHRS asynchronous fusion algorithm |
| Attitude capture range: | 360 ° omnidirectional motion posture output |
| Sensor refresh rate: | ≥800Hz |
| Attitude accuracy: | ROLL<0.5° PITCH<0.5 YAW<1.5° |
| Angular resolution: | ＜0.02° |
| Acceleration range: | ±160m/s2(16g) |
| Gyroscope range: | ±2000dps |
| Magnetometer range: | ±4.9Gs |
| Factory calibration: | Self-developed 24-plane and 9-parameter multi-sensor calibration technique |
| * Provide C + + SDK to support secondary development | |
| DreamsCap Glove | |
| Glove weight: | ≤170g |
| Glove material: | Integrated breathable anti-bacterial cloth gloves, removable, washable and replaceable |
| Number of sensors: | 16 |
| Battery type: | Lithium battery |
| Operating voltage: | 5V |
| Endurance: | ≥8h |
| Transmission method: | Adaptive frequency hopping 2.4 GHz wireless |
| Data Latency: | <16ms |
| Transmission distance: | ≤40m |
| Transmission frame rate: | 60Hz/72Hz/80Hz/96Hz/120Hz |
| Sensor core algorithm: | Independent research and development of multi-level AHRS asynchronous fusion algorithm |
| Attitude capture range: | 360 ° omnidirectional motion posture output |
| Sensor refresh rate: | ≥800Hz |
| Attitude accuracy: | ROLL<0.5°PITCH<0.5YAW<1.5° |
| Angular resolution: | ＜0.02° |
| Acceleration range: | ±160m/s2(16g) |
| Gyroscope range: | ±2000dps |
| Magnetometer range: | ±4.9Gs |
| Factory calibration: | Self-developed 24-plane and 9-parameter multi-sensor calibration technique |
| Feedback function: | Bimanual vibration feedback |
| * C + + SDK is provided to support secondary development (including gesture API) | |

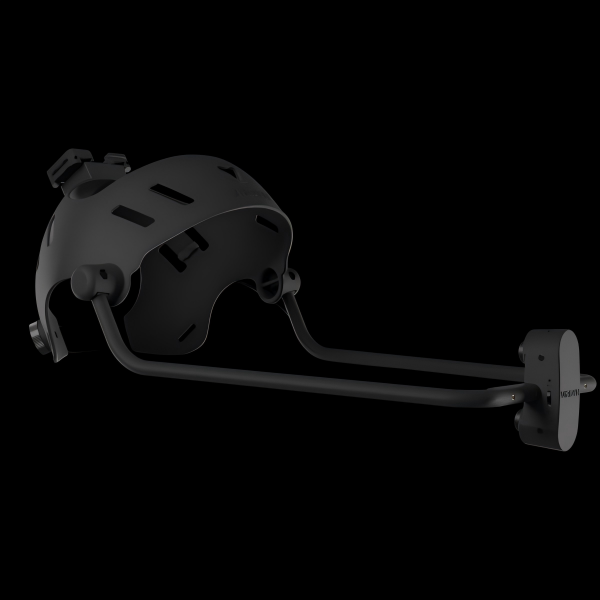

| DreamsCap Face | |
| Technical solution | Face capture technology |
| Camera | 1080P HD RGB camera |
| Shooting frame rate | 60FPS |
| Connection method | Wired connection USB-A2.0 and above |
| Connection length | 1.3m |
| Fill light | 3200K warm white light (soft and non-invasive to the eyes) |
| Size | Length 42cm, Width 24.5cm, Height 15.5cm |
| Weight | 280g Ultra light for long wear |
| Main materials | Polyamide (nylon) + foam lining |
| Capture expressions bs number | 52 |
| Support Plugins(FREE) | Unity/UE4.27/UE5/UE5.1/C++SDK |
| * C + + SDK is provided to support secondary development | |

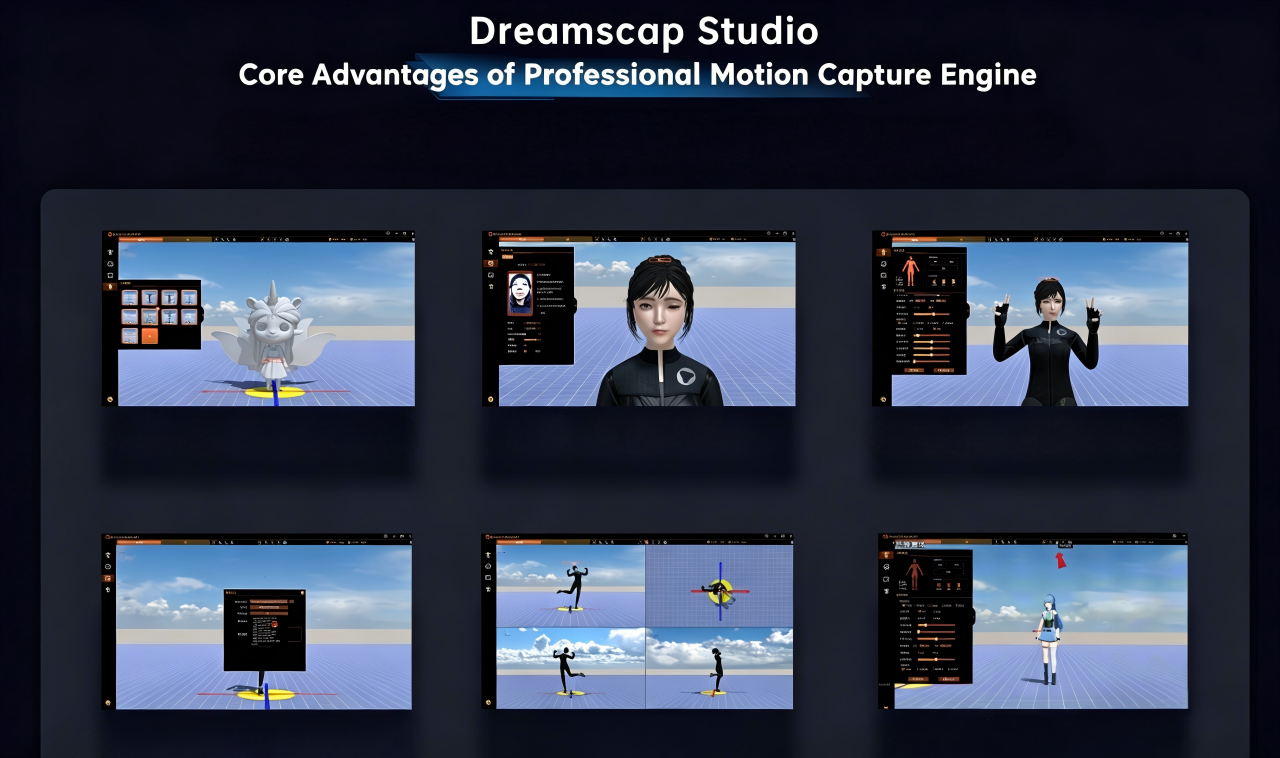

| DreamsCap Studio | |

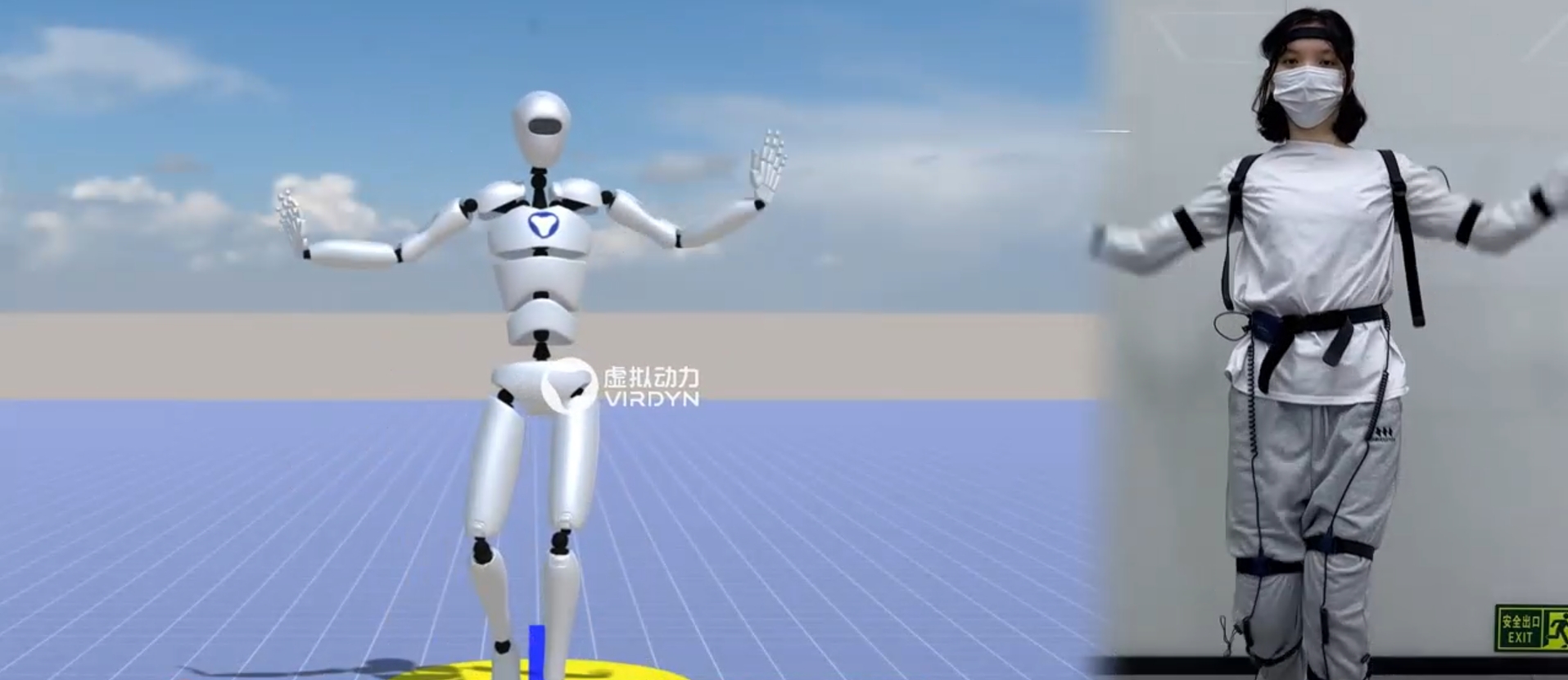

| Live Preview: | Easily realize real-time whole body posture capture, facial expression capture and real-time synchronous display of model-driven effects. |
| Multi-window mode: | Single-view and four-view mode |

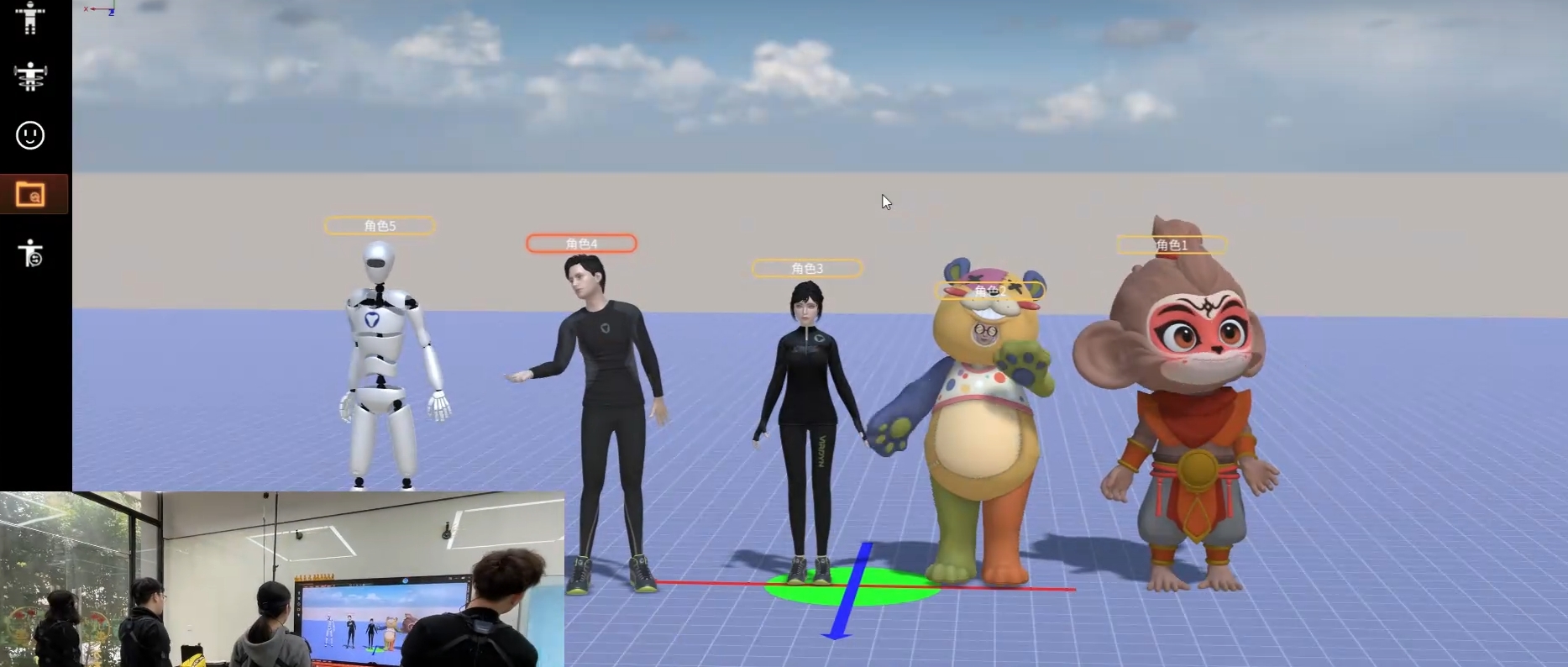

| Multi-players mode | Support up to five people in the screen at the same time |
| Reset and tracking modes: | Support model origin reset and visual angle reset |
| Motion capture control panel: | Adjust the action effect of the model in real time, and support the customized adjustment for the actual application scenario |
| Calibrate system performance: | A-pose and P-pose calibration |
| Special action support: | Supports up and down stairs, large dynamic movements, sitting, running, jumping |
| Anti-magnetic field interference performance: | Built-in self-developed adaptive magnetic field sensor algorithm can avoid sudden magnetic field interference (about 60s) |
| Performance fixes: | One-key repair of the whole set of equipment ensures the simplicity and sustainability of the whole system maintenance. |
| Model import: | Vab and fbx format models |
| Gesture recognition: | 10 + high-precision gesture recognition outputs |
| Data recording and playback: | Support real-time action data recording and playback of recorded action data |
| Output data type: | BVH , FBX, CSV, VAB |
| Data optimization: | Support post-processing algorithm of recorded data |
| Data stream: | MD data stream output based on network port, transmit through UDP protocol |

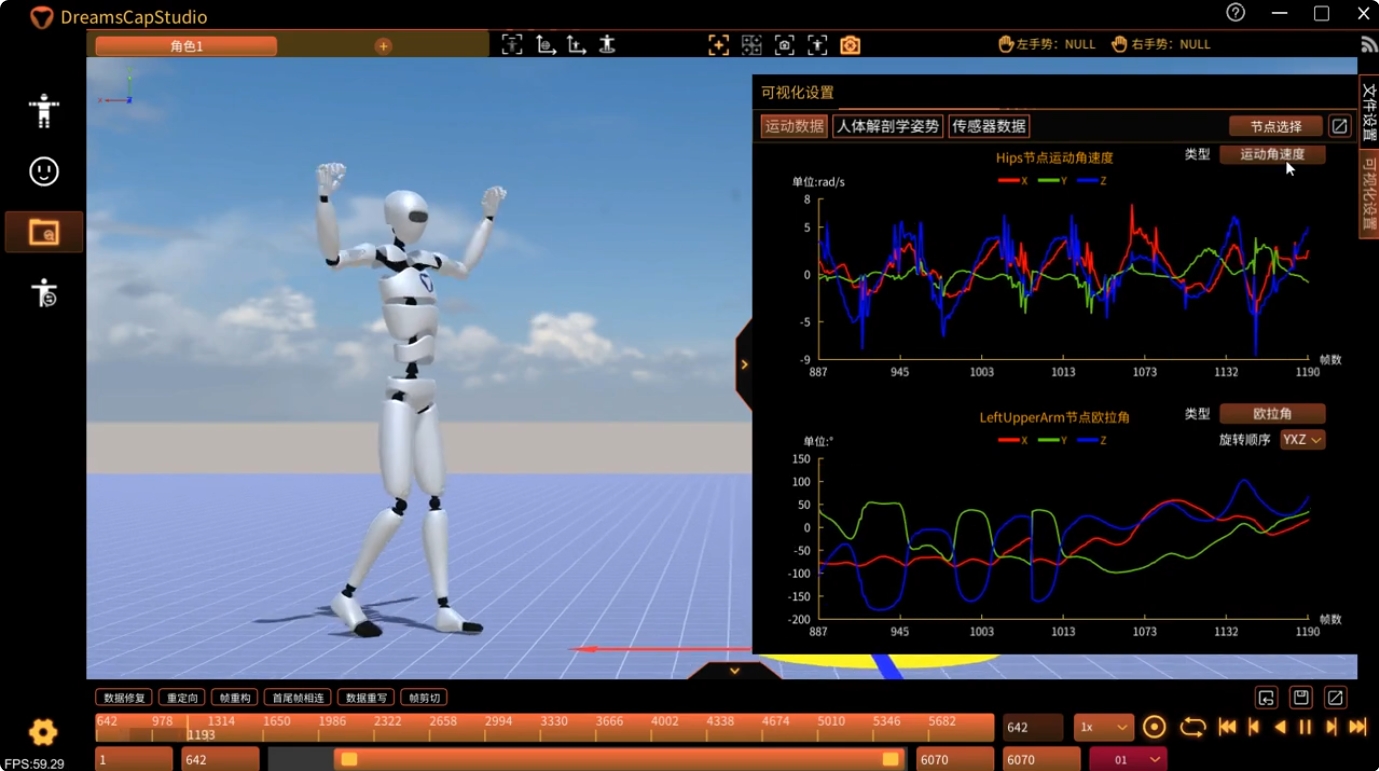

| Output data performance: | It can output the motion analysis data of 61 joints of the whole body, including position, velocity, acceleration, angle, angular velocity, etc. |
| Online update: | Support online update of dynamic capture engine |
| Plug-in support: | Unity3D、UE4-5、MotionBuilder、Blender |
| Surface capture data: | ARKit BlendShape Expression Data |
| Number of face capture emoticons: | 52 |
| Secondary development support: | Provide C + + SDK to support more third-party engines and Unity3D, UE4 and UE5 plug-ins |
| * The system integrates the functions of moving capture suit, moving capture gloves, face capture (ARKit) and other equipment, which can easily realize real-time whole body posture capture and real-time synchronous display of model driving effect. | |
Package Includes
● Body mocap suit: DreamsCap Body * 1
● Hand mocap gloves: DreamsCap Glove * 1
● Face capture helmet: DreamsCap Face * 1
● Professional Motion Capture Engine: DreamsCapStudio * 1 (send by email)
● 7-Port Expander * 1
● 64GB Mobile Hard Drive * 1
● Software keys * 1
● User Manual * 1
● Safety storage box * 1
