AH Camera-Based Face Capture Helmet With HD 1080p Embedded RGB Camera

Short Description:

USD$1,499.00 USD$1,199.00 (% off)

Virdyn’s first expression capture system without marker points! Comes with its own HD 1080p embedded RGB camera, no need to wear additional electronic devices to use it. Self-developed algorithm supports ARKIT standard 52 BS bindings and drivers. Seamlessly integrates with full body motion capture systems and supports use with inertial or optical motion capture. Wired transmission, unaffected by network lag, with a five metre extension cable to ensure high frame rate and low latency data transmission in real time. Multiple SDK plug-ins are supported and expression capture data can be imported into mainstream animation software or engines.

We have special offers for bulk orders, resellers, education/students, small studios etc, Please send inquiry email to us for more info!

If PayPal is not supported in your country, we also support other payment methods, please contact us for details!

Product Detail

Product Tags

Features

● Markerless facial motion capture system.

● Built-in high-definition 1080p embedded RGB camera, no additional electronic devices required for use.

● Self-developed algorithm supports 52 BS bindings and drives following ARKit standards.

● Seamlessly integrates with full-body motion capture systems, compatible with inertial or optical motion capture systems.

● Wired transmission, unaffected by network lag, with a five-meter extension cable to ensure high frame rates and low-latency real-time data transmission.

● Supports multiple SDK plugins, facial motion capture data can be imported into mainstream animation software or engines.

Specifications

Technical solution	Face capture technology
Camera	1080P HD RGB camera
Shooting frame rate	60FPS
Connection method	Wired connection USB-A2.0 and above
Connection length	1.3m
Fill light	3200K warm white light (soft and non-invasive to the eyes)
Size	Length 42cm, Width 24.5cm, Height 15.5cm
Weight	280g Ultra light for long wear
Main materials	Polyamide (nylon) + foam lining
Capture expressions bs number	52
Support Plugins(FREE)	Unity/UE4.27/UE5/UE5.1/C++SDK

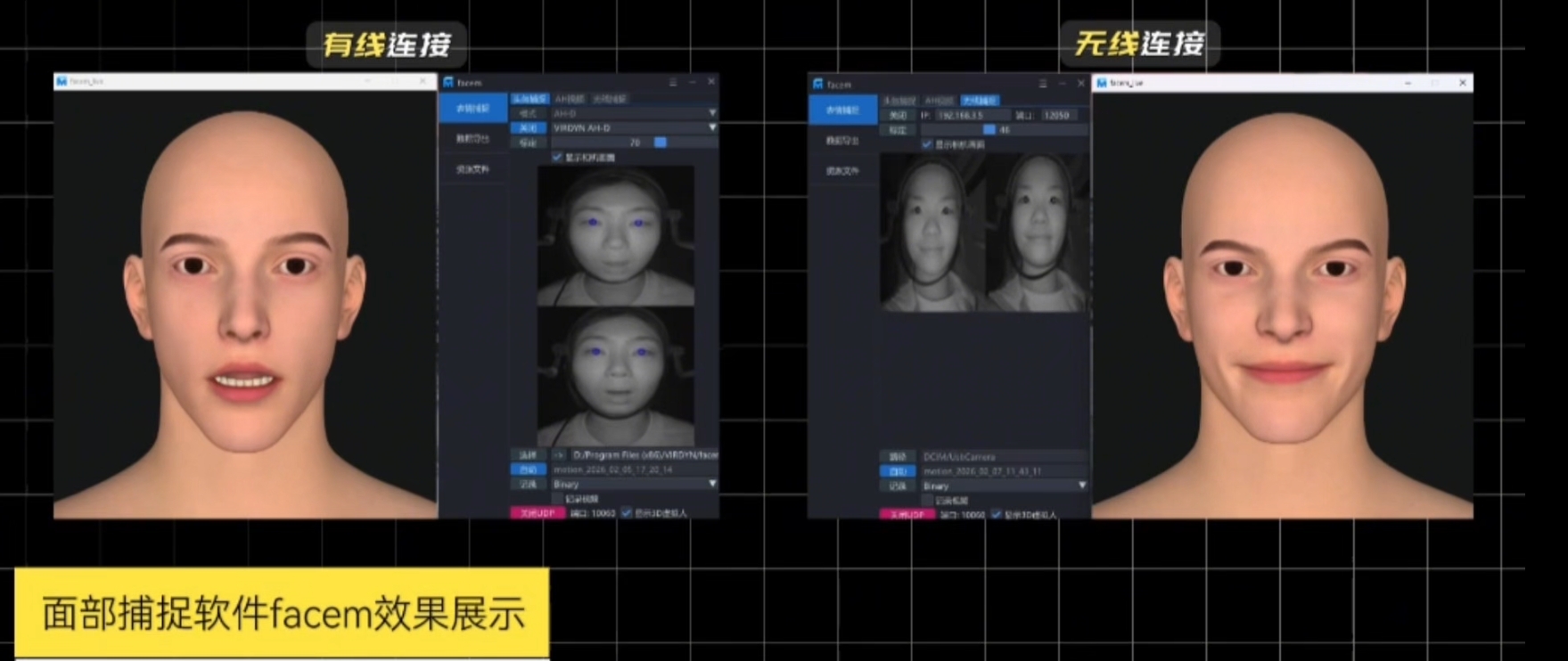

Device Performance Demonstration

Core Technology

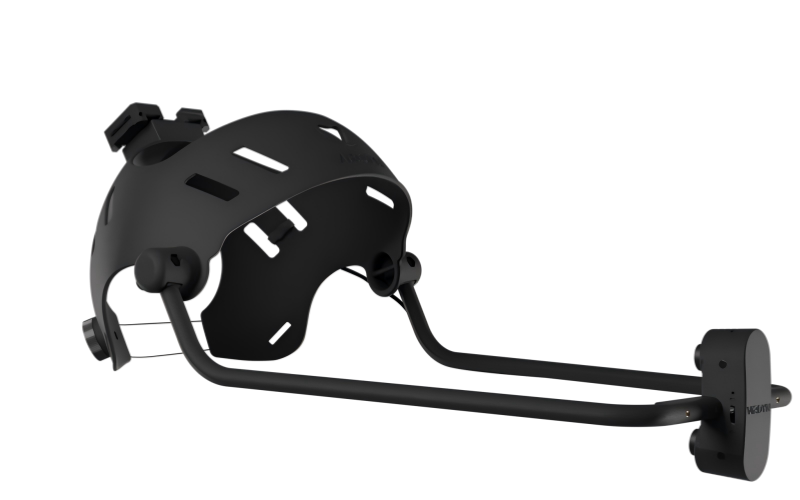

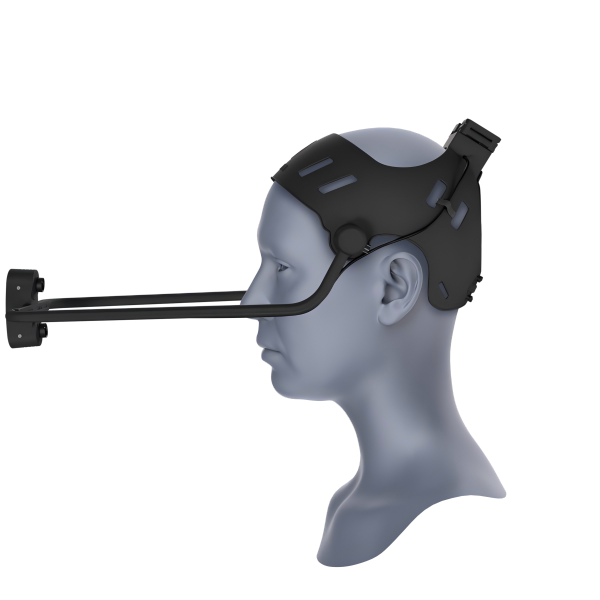

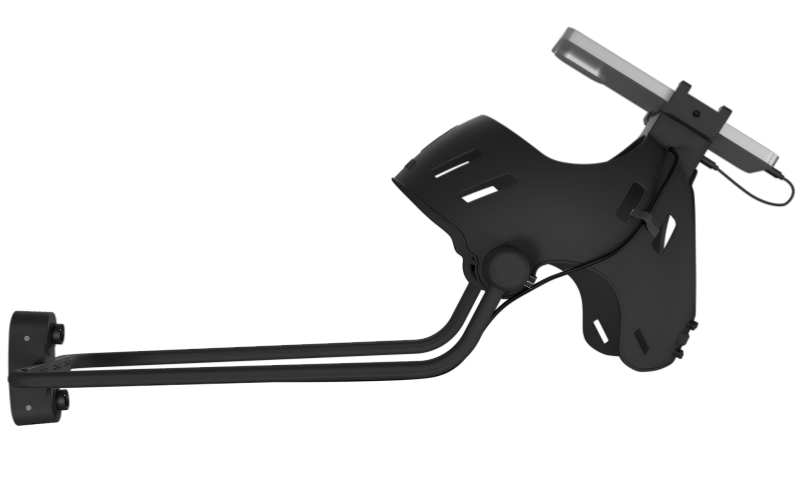

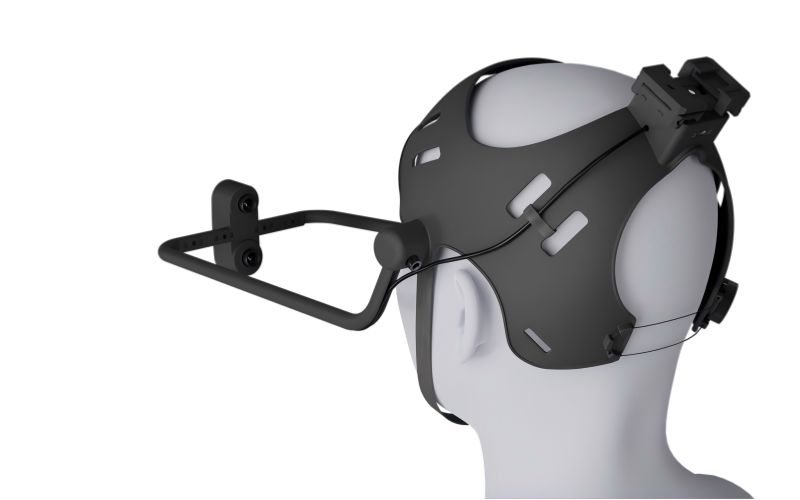

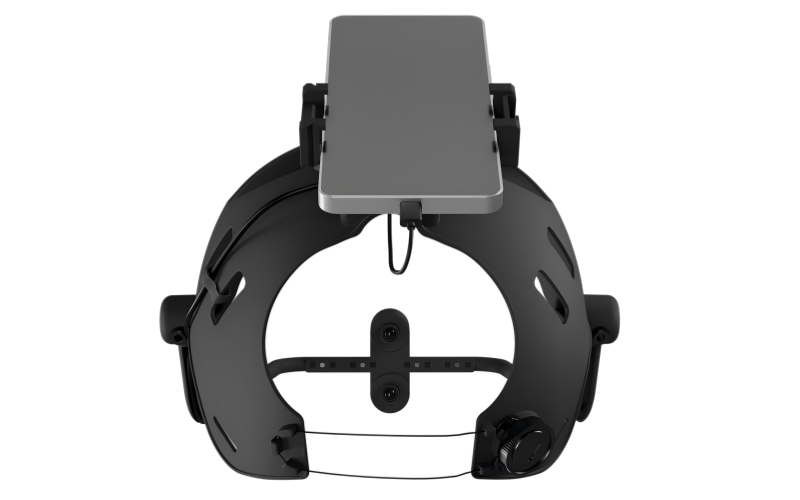

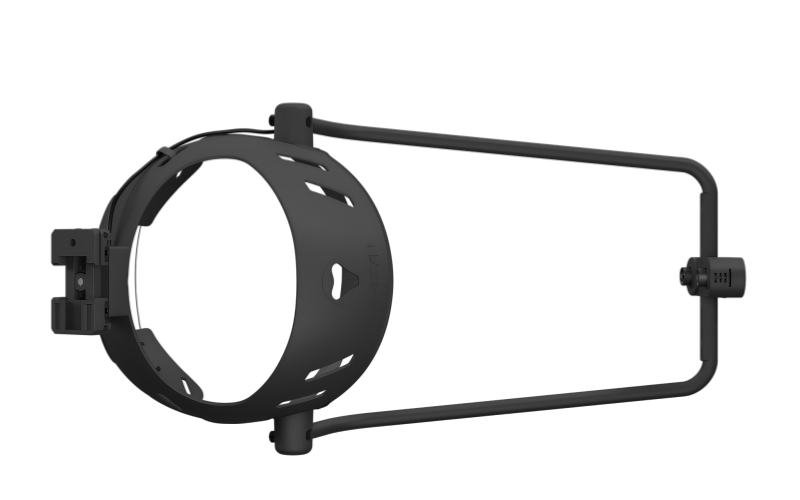

Helmet

● Weighing only 280g, it is extremely lightweight, allowing users to wear it for extended periods without any burden.

● Made of nylon with a sponge lining, it is sturdy and durable.

● Convenient to wear and easy to put on and take off.

RGB Camera

● Markerless motion capture system

● Built-in camera

● High-definition 1080p camera

● Supports 52 BS bindings and drivers

● Wired transmission, unaffected by network issues, with a 5-meter extension cable

● Multiple SDK plugins, compatible with popular animation software (Maya, Blender, 3DMAX, etc.) and engines (Unity, Unreal Engine)

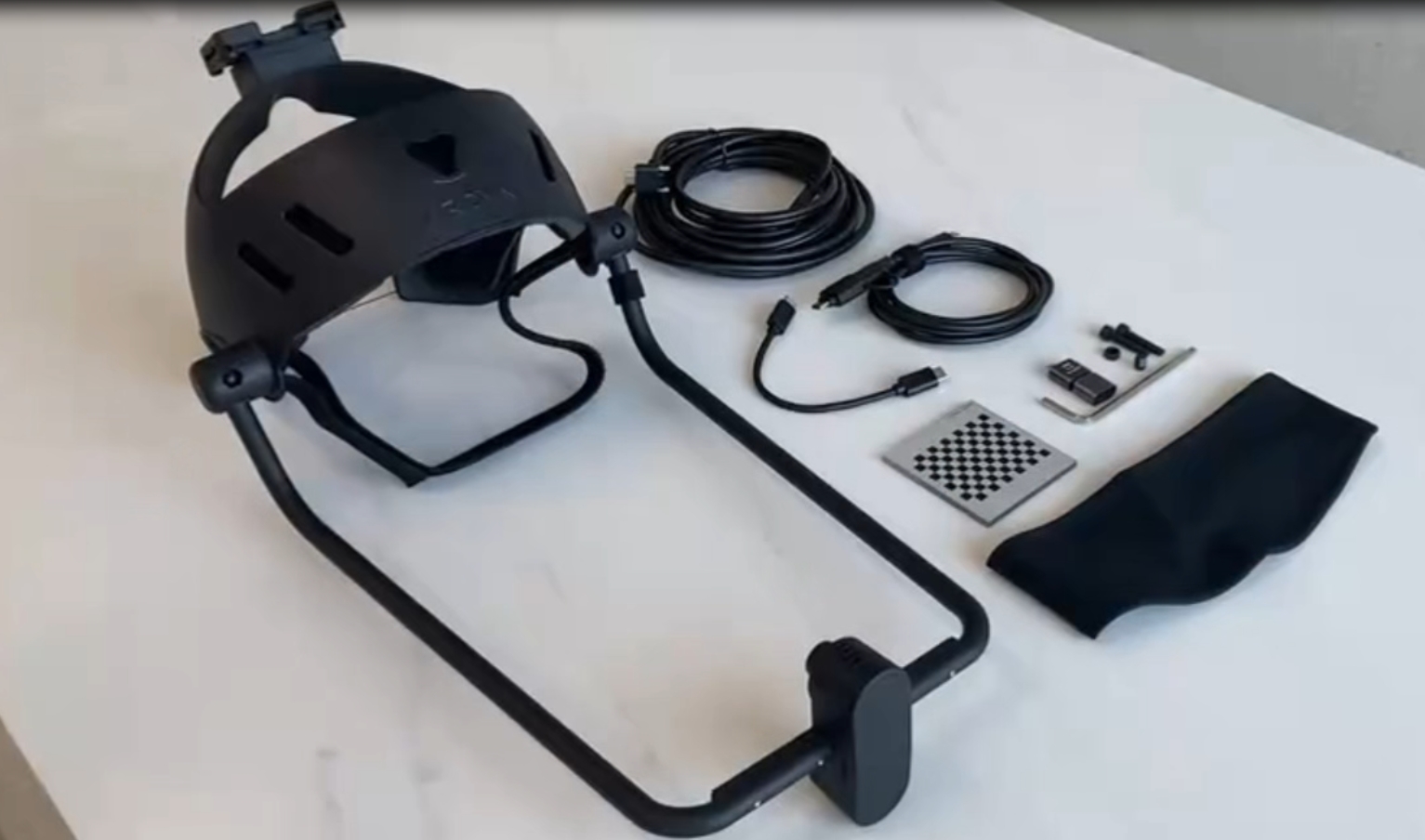

Package Includes

(1) Box and liner
(2) Instructions for use
(3) Warranty card
(4) Helmet cap
(5) Camera and mount
(6) Decorative screw covers
(7) Fixing screws and nuts
(8) Hexagonal spanner
(9) Strip helmet liner
(10) Chin strap
(11) Hair ties
(12) USB3.0 extension cable (5m)
(13) USB offline dog
